  •   -30%Daikin siltumsūknis ETVX16S23E9W komplektā āra bloks EPRA18DW17 ar dzesēšanu,B1294:B1303 jauda 12.50 kW

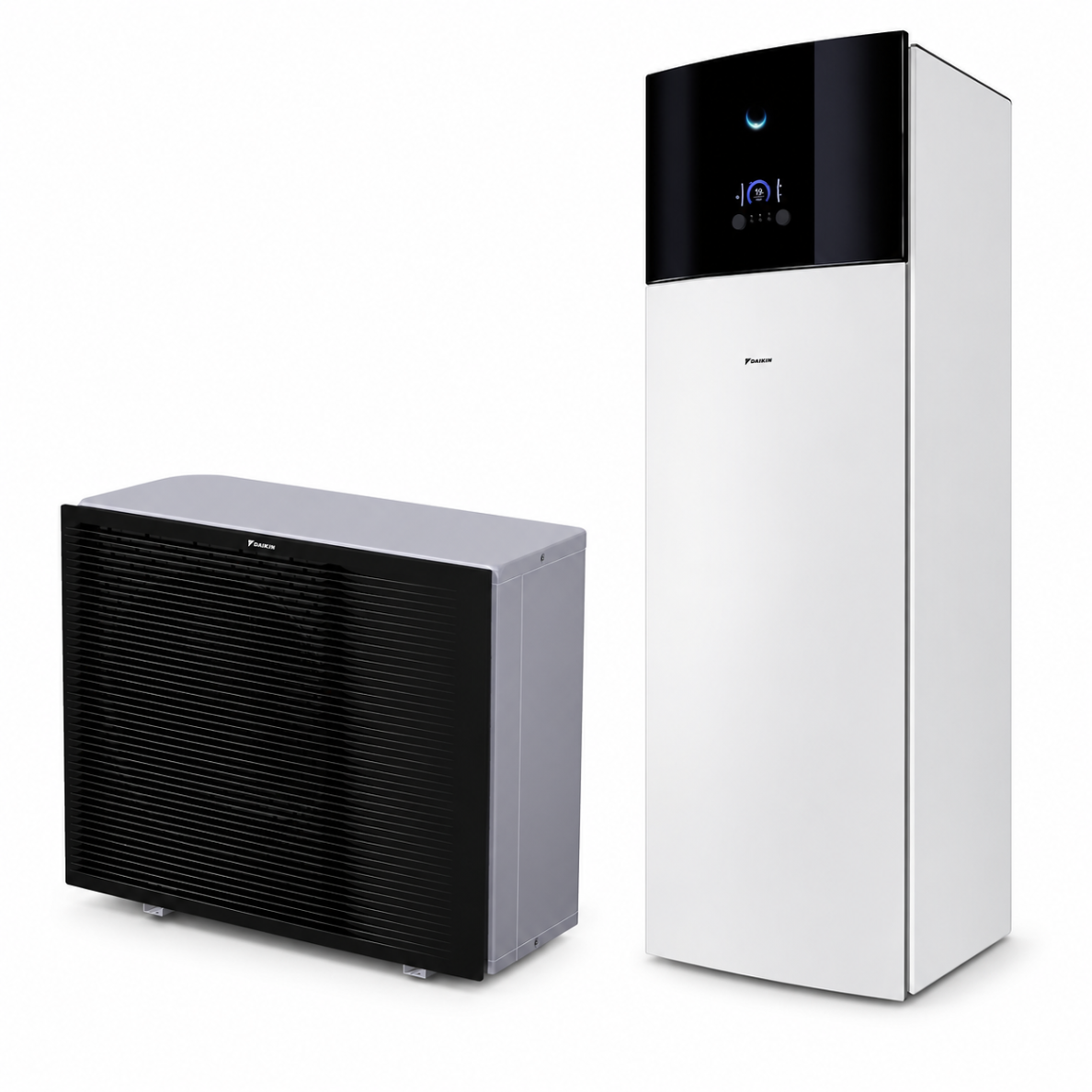

    Daikin siltumsūknis ETVX16S23E9W komplektā āra bloks EPRA18DW17 ar dzesēšanu,B1294:B1303 jauda 12.50 kW

    Jautāt
    Cena 13613.83 €
    19448.33 € Ietaupījums 5834.50 €
    Neapmierina cena? Piedāvā savējo!
    Prece ir noliktavā
    Uz grozu


  • Komplekts

    Preces komplektu veido āra bloks, iekšējais bloks un vadība.


    Pilns apraksts

    Iekšējā bloka apraksts:

    https://www.daikin.eu/en_us/products/product.html/ETVX16E9W.html


    Āra bloka apraksts:

    https://www.daikin.eu/en_us/products/product.html/epra14-18dw7.html



    Iekšējais bloks ETVX16S23E6V ETVX16S23E6V ETVX16S23E6V ETVX16S23E9W ETVX16S23E9W ETVX16S23E9W
    Āra bloks EPRA14DW17 EPRA16DW17 EPRA18DW17 EPRA14DW17 EPRA16DW17 EPRA18DW17
    Ūdens tvertne 230 L 230 L 230 L 230 L 230 L 230 L
    Apkure / Dzesēšana kW, ja āra temperatūra ir +7°C 10.50 / 10.20 11.50 / 11.30 12.50 / 12.60 10.50 / 10.20 11.50 / 11.30 12.50 / 12.60
    Heating capacity Nom. kW 5.90 9.00 9.00 5.90 9.00 9.00
    Power input Heating kW 1.23 1.80 1.80 1.23 1.80 1.80
    Space heating Average
    climate
    water
    outlet 55°C    		 General SCOP   3.63 3.63 3.63 3.63 3.63 3.63
      ηs (Seasonal space heating efficiency) % 142 142 142 142 142 142
      Seasonal space heating eff. class   A++ A++ A++ A++ A++ A++
      Prated at -10°C kW 13 13 13 13 13 13
    Average
    climate
    water
    outlet 35°C    		 General SCOP   4.81 4.81 4.81 4.81 4.81 4.81
      ηs (Seasonal space heating efficiency) % 190 190 190 190 190 190
      Seasonal space heating eff. class   A+++ A+++ A+++ A+++ A+++ A+++
      Prated at -10°C kW 13 13 13 13 13 13
    Domestic hot water heating General Declared load profile   XL XL XL XL XL XL
    Average
    climate    		 COPdhw   2.55 2.55 2.55 2.55 2.55 2.55
    ηwh (water heating efficiency) % 107 107 107 107 107 107
    Water heating energy efficiency class   A A A A A A
    Indoor Unit ETVX 16S23E6V 16S23E6V 16S23E6V 16S23E9W 16S23E9W 16S23E9W
    Casing Material       Precoated sheet metal
    Dimensions Unit HeightxWidthxDepth   mm 1850x595x625
    Weight Unit     kg 118
    Tank Water volume     l 230 230 230 230 230 230
    Maximum water temperature     °C 70.0
    Maximum water pressure     bar 10
    Corrosion protection       Pickling
    Operation range Indoor installation Ambient Min.~Max. °CDB 5~35 (3)
    Heating Water side Min.~Max. °C 15~70
    Domestic hot water Water side Min.~Max. °CDB 10~63
    Sound power level Nom.     dBA 44.0 (1)
    Sound pressure level Nom.     dBA 30.0 (2)
    Outdoor Unit EPRA 14DW17 16DW17 18DW17 14DW17 16DW17 18DW17
    Dimensions Unit HeightxWidthxDepth mm 1003x1270x533
    Weight Unit     kg 150
    Compressor Quantity       1
    Type       Hermetically sealed scroll compressor
    Operation range Heating Min.~Max.   °CDB -28.0~35
    Cooling Min.~Max.   °CDB 10~43
    Domestic hot water Min.~Max.   °CDB -28~35
    Refrigerant Type       R-32
    GWP       675.0
    Charge     kg 4.2
    Charge     tCO2Eq 2.84
    Control       Expansion valve
    Sound power level Heating Nom.   dBA 56.0 56.0 59.0 56.0 56.0 59.0
    Cooling Nom.   dBA 65.0 65.0 65.0 65.0 65.0 65.0
    Sound pressure level Heating Nom.   dBA 43.0 43.0 48.0 43.0 43.0 48.0
    Cooling Nom.   dBA 52 52 52 52 52 52
    Power supply Name/Phase/Frequency/Voltage     Hz/V V3/1~/50/230  W1/3~/50/400
    Current Recommended fuses     A 32 16
