  •   -30%Daikin siltumsūknis ETVX16S18E9W komplektā āra bloks EPRA14DW17 ar dzesēšanu, jauda 10.50 kW

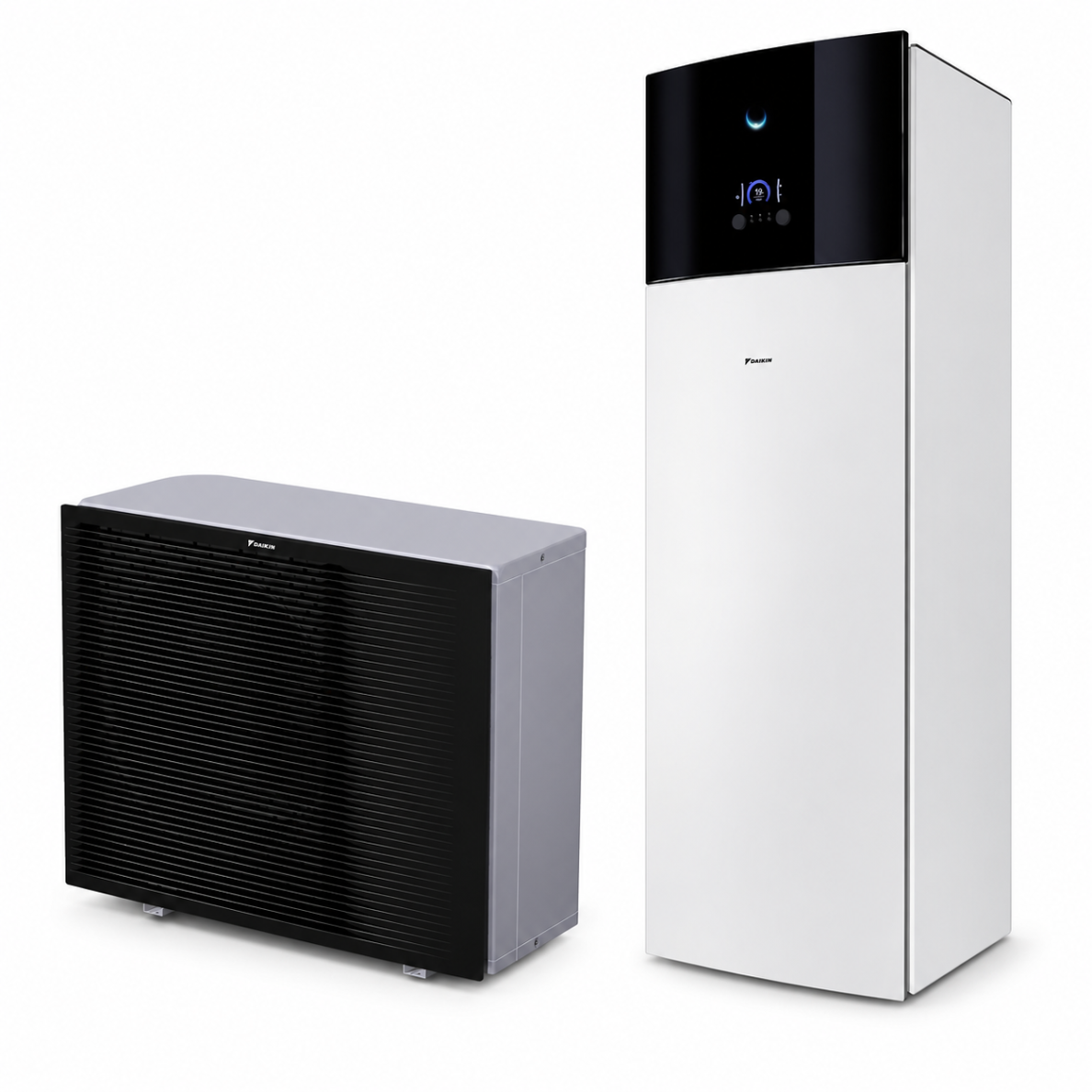

    Daikin siltumsūknis ETVX16S18E9W komplektā āra bloks EPRA14DW17 ar dzesēšanu, jauda 10.50 kW

    Jautāt
    Cena 12325.54 €
    17607.92 € Ietaupījums 5282.38 €
    Neapmierina cena? Piedāvā savējo!
    Prece ir noliktavā
    Uz grozu


  • Komplekts

    Preces komplektu veido āra bloks, iekšējais bloks un vadība.


    Pilns apraksts

    Iekšējā bloka apraksts:

    https://www.daikin.eu/en_us/products/product.html/ETVX16E9W.html


    Āra bloka apraksts:

    https://www.daikin.eu/en_us/products/product.html/EPRA14-18DW7.html


    Iekšējais bloks ETVX16S18E6V ETVX16S18E6V ETVX16S18E6V ETVX16S18E9W ETVX16S18E9W ETVX16S18E9W
    Āra bloks EPRA14DW17 EPRA16DW17 EPRA18DW17 EPRA14DW17 EPRA16DW17 EPRA18DW17
    Ūdens tvertne 180 L 180 L 180 L 180 L 180 L 180 L
    Apkure / Dzesēšana kW, ja āra temperatūra ir +7°C 10.50 / 10.20 11.50 / 11.30 12.50 / 12.60 10.50 / 10.20 11.50 / 11.30 12.50 / 12.60
    Heating capacity Nom. kW 5.90 9.00 9.00 5.90 9.00 9.00
    Power input Heating kW 1.23 1.80 1.80 1.23 1.80 1.80
    Space heating Average
    climate
    water
    outlet 55°C    		 General SCOP   3.63 3.63 3.63 3.63 3.63 3.63
      ηs Seasonal space heating efficiency % 142 142 142 142 142 142
      Seasonal space heating eff. class   A++ A++ A++ A++ A++ A++
      Prated at -10°C kW 13 13 13 13 13 13
    Average
    climate
    water
    outlet 35°C    		 General SCOP   4.81 4.81 4.81 4.81 4.81 4.81
      ηs Seasonal space heating efficiency % 190 190 190 190 190 190
      Seasonal space heating eff. class   A+++ A+++ A+++ A+++ A+++ A+++
      Prated at -10°C kW 13 13 13 13 13 13
    Domestic hot water heating General Declared load profile   L L L L L L
    Average
    climate    		 COPdhw   2.51 2.51 2.51 2.51 2.51 2.51
    ηwh water heating efficiency % 106 106 106 106 106 106
    Water heating energy efficiency class   A A A A A A
    Indoor Unit ETVX 16S18E6V 16S18E6V 16S18E6V 16S18E9W 16S18E9W 16S18E9W
    Casing Material       Precoated sheet metal
    Dimensions Unit HeightxWidthxDepth   mm 1650x595x625
    Weight Unit     kg 109
    Tank Water volume     l 180 180 180 180 180 180
    Maximum water temperature     °C 70.0
    Maximum water pressure     bar 10
    Corrosion protection       Pickling
    Operation range Indoor installation Ambient Min.~Max. °CDB 5~35 (3)
    Heating Water side Min.~Max. °C 15~70
    Domestic hot water Water side Min.~Max. °CDB 10~63
    Sound power level Nom.     dBA 44.0 (1)
    Sound pressure level Nom.     dBA 30.0 (2)
    Outdoor Unit EPRA 14DW17 16DW17 18DW17 14DW17 16DW17 18DW17
    Dimensions Unit HeightxWidthxDepth mm 1003x1270x533
    Weight Unit     kg 150
    Compressor Quantity       1
    Type       Hermetically sealed scroll compressor
    Operation range Heating Min.~Max.   °CDB -28.0~35
    Cooling Min.~Max.   °CDB 10~43
    Domestic hot water Min.~Max.   °CDB -28~35
    Refrigerant Type       R-32
    GWP       675.0
    Charge     kg 4.2
    Charge     tCO2Eq 2.84
    Control       Expansion valve
    Sound power level Heating Nom.   dBA 56.0 56.0 59.0 56.0 56.0 59.0
    Cooling Nom.   dBA 65.0 65.0 65.0 65.0 65.0 65.0
    Sound pressure level Heating Nom.   dBA 43.0 43.0 48.0 43.0 43.0 48.0
    Cooling Nom.   dBA 52 52 52 52 52 52
    Power supply Name/Phase/Frequency/Voltage     Hz/V  V3/1~/50/230 W1/3~/50/400
    Current Recommended fuses     A 32 16
