  •   -27%Daikin siltumsūknis ETVX12S18E9W komplektā āra bloks EPRA08EW1 ar dzesēšanu, jauda 7.95 kW

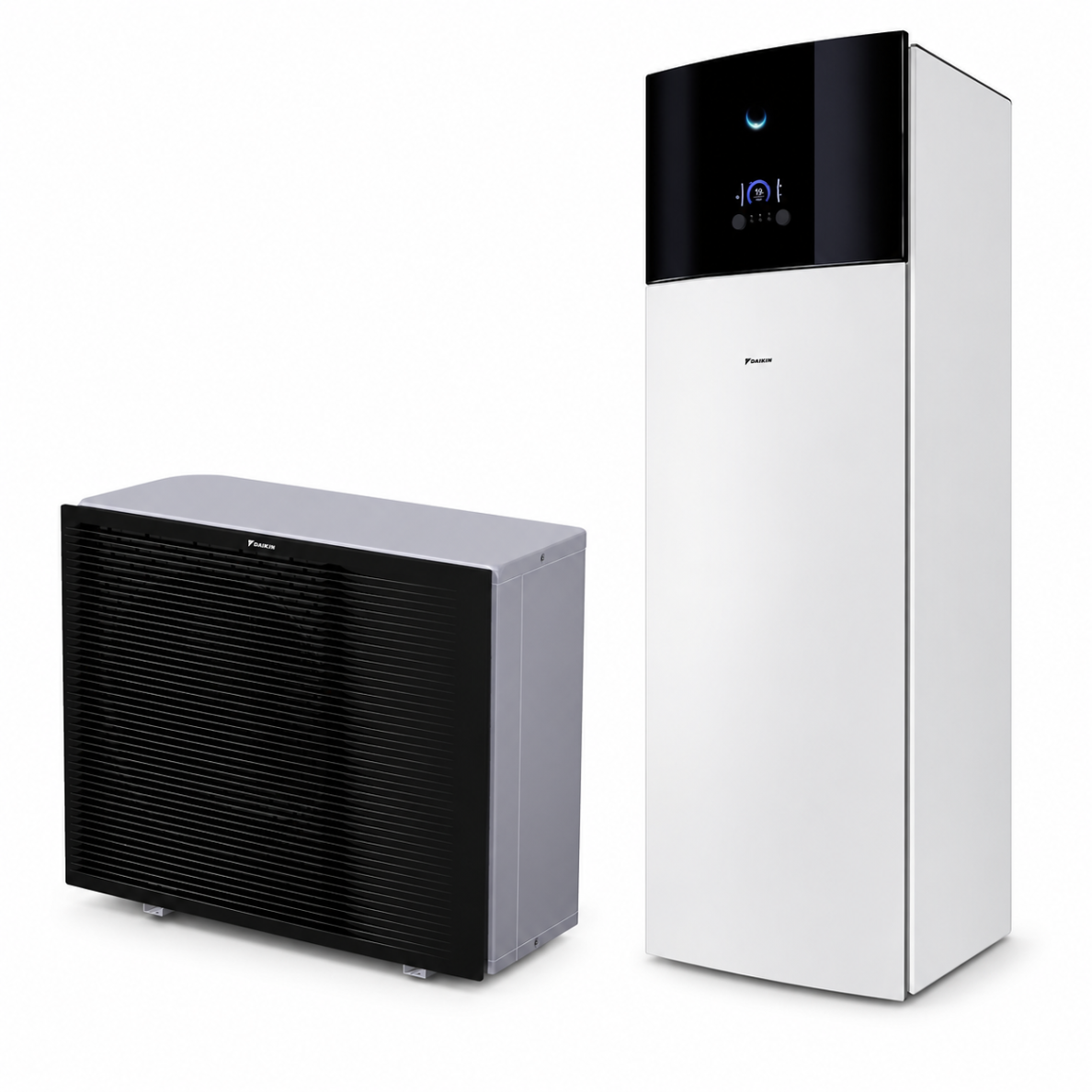

    Daikin siltumsūknis ETVX12S18E9W komplektā āra bloks EPRA08EW1 ar dzesēšanu, jauda 7.95 kW

    Jautāt
    Cena 11653.87 €
    15887.30 € Ietaupījums 4233.43 €
    Neapmierina cena? Piedāvā savējo!
    Prece ir noliktavā
    Uz grozu


  • Komplekts

    Preces komplektu veido āra bloks, iekšējais bloks un vadība.


    Pilns apraksts

    Iekšējā bloka apraksts:

    https://www.daikin.eu/en_us/products/product.html/ETVX12E9W.html


    Āra bloka apraksts:

    https://www.daikin.co.uk/en_gb/products/product.html/EPRA08-12EW.html


    Iekšējais bloks ETVX12S18E6V ETVX12S18E6V ETVX12S18E6V ETVX12S18E9W ETVX12S18E9W ETVX12S18E9W
    Āra bloks EPRA08EW1 EPRA10EW1 EPRA12EW1 EPRA08EW1 EPRA10EW1 EPRA12EW1
    Ūdens tvertne 180L 180L 180L 180L 180L 180L
    Apkure / Dzesēšana kW, ja āra temperatūra ir +7°C  7.95 / 10.24 9.25 / 10.98 9.97 / 11.91 7.95 / 10.24 9.25 / 10.98 9.97 / 11.91
    Heating capacity Nom. kW 6.17 6.17 6.17 6.17 6.17 6.17
    Power input Heating kW 1.21 1.21 1.21 1.21 1.21 1.21
    Space heating Average
    climate
    water
    outlet 55°C    		 General SCOP   3.60 3.60 3.60 3.60 3.60 3.60
      ηs (Seasonal space heating efficiency) % 141 141 141 141 141 141
      Seasonal space heating eff. class   A++ A++ A++ A++ A++ A++
      Prated at -10°C kW 8.5 8.5 8.5 8.5 8.5 8.5
    Average
    climate
    water
    outlet 35°C    		 General SCOP   4.98 4.98 4.98 4.98 4.98 4.98
      ηs (Seasonal space heating efficiency) % 196 196 196 196 196 196
      Seasonal space heating eff. class   A+++ A+++ A+++ A+++ A+++ A+++
      Prated at -10°C kW 8.5 8.5 8.5 8.5 8.5 8.5
    Domestic hot water heating General Declared load profile   L L L L L L
    Average
    climate    		 COPdhw   2.80 2.80 2.80 2.80 2.80 2.80
    ηwh (water heating efficiency) % 120 120 120 120 120 120
    Water heating energy efficiency class   A+ A+ A+ A+ A+ A+
    Indoor Unit ETVX 12S18E6V 12S18E6V 12S18E6V 12S18E9W 12S18E9W 12S18E9W
    Casing Material       Precoated sheet metal
    Dimensions Unit HeightxWidthxDepth   mm 1650x595x625
    Weight Unit     kg 108
    Tank Water volume     l 180 180 180 180 180 180
    Maximum water temperature     °C 70.0
    Maximum water pressure     bar 10
    Corrosion protection       Pickling
    Operation range Indoor installation Ambient Min.~Max. °CDB 5~35
    Heating Water side Min.~Max. °C 18~65
    Domestic hot water Water side Min.~Max. °CDB 10~63
    Sound power level Nom.     dBA 44.0
    Sound pressure level Nom.     dBA 30.0
    Outdoor Unit EPRA 08EW1 10EW1 12EW1 08EW1 10EW1 12EW1
    Dimensions Unit HeightxWidthxDepth mm 1003x1270x533
    Weight Unit     kg 118
    Compressor Quantity       1
    Type       Hermetically sealed swing compressor
    Operation range Heating Min.~Max.   °CDB -28.0~25
    Cooling Min.~Max.   °CDB 10~43
    Domestic hot water Min.~Max.   °CDB -28~35
    Refrigerant Type       R-32
    GWP       675.0
    Charge     kg 3.25
    Charge     tCO2Eq 2.19
    Control       Expansion valve
    Sound power level Heating Nom.   dBA 55.6 55.6 55.6 55.6 55.6 55.6
    Cooling Nom.   dBA 61.2 61.4 60.9 61.2 61.4 60.9
    Sound pressure level Heating Nom.   dBA 41.1 41.1 41.1 41.1 41.1 41.1
    Cooling Nom.   dBA 47.1 47.1 47.2 47.1 47.1 47.2
    Power supply Name/Phase/Frequency/Voltage     Hz/V V3/1~/50/230  W1/3~/50/400
    Current Recommended fuses     A  32 16
